2618-1B, 2698-1, 29-172 SB and 29-273BB

The "Cylinder-Bed" Lockstitch machines are normally used in the production of hand bags, purses, footwear, upholstery, caps, and orthopedic products.

The Cylinder Bed sewing machines are mostly used to reach into smaller places where a flat bed sewing machine is just not practical. This model is a Compound Needle Feed Walking Foot with Reverse feed. Uses a Big bobbin Rotating Hook and a size "M" bobbin.

On top of the The is a dial operated knob. When turned from a smaller number to a large number, the step of the presser foot is increased. This feature causes the machine to step up to an obstacle and then to walk over the seam or welt cord or obstacle. The presser feet lifting lever is placed on the front of the machine making lifting the feet by hand far simpler than pervious models.

Contact for additional information concerning your product application needs.

2618-1B
The 2618-1B leather model is designed to stitch any type of leather with a quality stitch formation and without damaging the leather in any way. The 2618-1B sews from a piece of paper thickness up to a little over 3/8" of leather compressed. The machines will easily sew from size 33 up to 207 threads.

The 2618-1B Cylinder Arm Compound Needle Feed, Walking Foot Sewing Machine mechanism reduces ply slippage and produces equal distant stitches on automotive upholstery, leather, webbing, and heavy products. The 2618-1B is primarily designed for auto trimmers, artisans, leather-crafter's, upholsters, and industrial sewing operations. We recommend the machine for sewing light to medium-heavy weight leathers and upholstery type fabrics.

• Walking Foot Machine with Standard Interchangeable 111W Presser Feet.
• Reverse Feed
• Adjustable Height Presser Foot Walk Device to Climb over Heavy Obstacles.
• Large Rotary Hook and "M" Size Big Bobbin.
• Drop-in Large Bobbin.
• Sewing speed up to 1,800 spm.
• Sews up to 3/8" thickness of Leather or Fabrics.
• Standard needle sizes 135x18 or 135x23
• Manual Lubrication with Oil Reservoir to Lubricate the Rotating Hook.
• Extremely Quiet and Reliable Operation.
• Maximum Stitch Length 6mm.
• Handles thread up to 207.

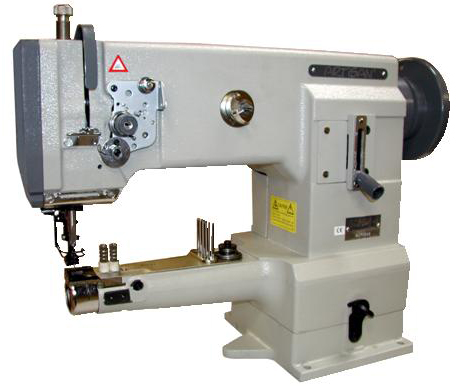

2698-1

2698-1 is a Cylinder-Bed, Compound Needle Feed, Walking Foot “Scuff” Feed Machine with a “L” size Bobbin and Rotating Hook. Synchronized Binder System, Reverse Feed for Back-Tacking. The Machine Sews up to 3/8” with a 9/16” high presser foot lift. Available with the EP Pedestal Motor Drive Unit and SR-2 Speed Reducer. For Stitching: Binding on Hats, Bags, Wallets, Webbing, Canvas, Boots and Shoes and many other products. The machine is designed to apply tape or ribbon binding to the edge of fabrics.

• Sews Thread from size z-33 to z-138.
• Recommended Needle: Schmetz 135 x 16 #18 to #23 TRI
• PFAFF STYLE FITTINGS.
• Built-in Bobbin Winder.

29-172 SB
The 29-172 is known as a Short Arm Single Needle Lockstitch, Universal Feed Sewing machine with an 12 1/2" long Cylinder Arm and a small bobbin Oscillating Shuttle. The 29-172 machine has a long needle bar stroke and will sew up to 1/4" of leather or fabrics. As with all Universal feed machines the feeding presser foot turns in 360 degrees which allows the machine to sew in any direction.

The 29-172, sewing area up to approximately 12". Cylinder width 7/8". The extra large balance wheel can be mounted either on the end of the main shaft or on the front of the machine. Available with the Artisan EP Pedestal Motor Drive Unit and SR-2 Speed Controller. Recommended Needle: Schmetz 135 x 16 #11 to #23 Standard #18

29-172 series machines are designed and manufactured to quietly and smoothly stitch smaller sized leather, canvas, nylon, webbing, belts, tack, harness, and other types of heavy and light duty industrial and consumer products including stitching on patches and emblems on shirts and jackets.

29-273 BB
The 29-273 is known as a Long Arm Cylinder Bed, Universal Feed Patching machine. This model has a large bobbin and the cylinder is 18" in length. All the features of the long arm machine are similar to the short arm except for the length of the cylinder and that the bobbin in this model is larger and holds more thread. Sews up to 1/4" leather with a 9/16" high presser foot lift. The29-273 BB series machines have a long needle bar stroke.

The 29-273 the extra large balance wheel can be mounted either on the end of the main shaft or on the front of the machine. Sewing area up to approximately 18". Cylinder width 1 5/32". Available with the Artisan EP Pedestal Motor Drive Unit and SR-2 Speed Controller. Other Sub Classes are Available. Recommended Needle: Schmetz 135 x 16 #14 to #24 Standard #22. Cylinder width 1 5/32"

29-273 BB series machines are designed and manufactured to quietly and smoothly stitch smaller sized leather, canvas, nylon, webbing, belts, tack, harness, and other types of heavy and light duty industrial and consumer products.

• The stitch length is adjustable up to a long length of 3.7 stitches per inch.
• Sewing speed up to 500 spm
• Presser Foot Lift by hand 10.5 mm
• Long Needle Bar Stroke

TORO 4000 LA-25, TORO 4000 LA-37, TORO 4011 LA-37

models TORO 4000 LA-25, TORO 4000 LA-37, TORO 4011 LA-37 series machines are Heavy Duty Long Arm Cylinder Bed Lockstitch Sewing Machines. The stitchers are designed to sew heavy weight products with an adjustable length stitch regulator, oscillating shuttle, and a reverse feed mechanism. All models use the same #794 needles and bobbins. The heavy stitchers are designed to sew from a very short stitch length up to 3 stitches per inch.

The TORO 4000 LA stitchers are intended for stitching on medium-heavy to extra heavy weight textiles and leathers such as golf bags, saddle pads and blankets. The long arm machines are also used for stitching high temperature blankets to keep industrial machinery warm in extreme climates and for stitching and quilting very large ordnance protective blankets and shields. Both the TORO 4000 LA-37 and TORO 4011 LA-37 models are only available with the LA-37 pedestal system.

Contact for additional information concerning your product application needs.

TORO 4000 LA-25 The Professional model TORO-4000 LA-25 has a SUPER LONG 25 " working area and is intended for heavy production sewing. This machine is a Compound Needle Feed Walking-Foot Stitching Machine designed to sew Leather, Webbing, Canvas, Filters and any Heavy Fabrics from about 1/16" up to 7/8" thick with an adjustable stitch length lever and reverse feed for back-tacking. This top-of-the-line TORO model is manufactured to the highest quality standards for continuous production sewing.

• Cylinder arm with Large Shuttle Hook
• Most spare parts are interchangeable with the "Juki" brand model TSC-461.
• Many special optional needle plates and presser feet are available.
• Available only with the LA-25 Extra Heavy Duty Pedestal system.

TORO 4000 LA-37 The Professional model TORO-4000 LA-37 has a SUPER LONG 37" working area and is intended for heavy production sewing. This machine is a Compound Needle Feed Walking-Foot Stitching Machine designed to sew Leather, Webbing, Canvas, Filters and any Heavy Fabrics from about 1/16" up to 7/8" thick with an adjustable stitch length lever and reverse feed for back-tacking. This top-of-the-line TORO model is manufactured to the highest quality standards for continuous production sewing.

• Cylinder arm with Large Shuttle Hook
• Available only with the LA-37 pedestal system.
• Most spare parts are interchangeable with the "Juki" brand model TSC-461.
• Many special optional needle plates and presser feet are available.

The TORO-4011 LA-37 is another HEAVY DUTY 37" Long Arm Cylinder-Bed machine, but it sews "UP-THE-ARM". The machine sews from the end of the cylinder towards the hand wheel. Most machines sew from front to rear of the machine away from the operator. The TORO 4011 LA-37 with its 37" cylinder arm is designed to stitch left to right from the end of the cylinder towards the hand-wheel. In reverse the machine sews off-the-arm. The TORO 4011 LA-37 is a Drop Feed Long Arm Lockstitch Machine. It is not a walking foot system.

Will sew up to 5/8" of material for items such as golf bags, luggage, bags, tents, sails, parachutes, umbrellas and other products where transverse (sideways) stitching is necessary.

SPECIAL ORDER.

• Maximum sewing speed: 800 SPM.
• Maximum stitch length: 7.5 mm.
• Sews with up to size 415 thread.
• Large barrel oscillating shuttle hook system.
• Maximum presser foot lift: 3/4"
• Recommended needle: Schmetz 794
• Available only with the LA-37 pedestal system.

4608, 4699, 4618, 4518-2, 5110, 5120 and 6191 LTHR Series

The are "Post Bed" style lockstitch machines normally used in the production of footwear, upholstery, caps, and orthopedic products. In today's world many are using post bed sewing machines for decorative stitching on western boot tops as well as assembly of boots and shoes. Others use the machines for the assembly of ball caps, pillows and cushions.

The "Post Bed" style lockstitch machines are High quality sewing machines designed for a full day of production sewing of: Upholstery, Canvas, Tarps, Leather, Denim, Nylon or other heavy fabrics

Contact for additional information concerning your product application needs.

4608
The 4608 series are Compound Needle Feed Walking Foot Machines. Two sub classes are available. A single needle and a double needle version., model 4608-2. Both models have a 7'' post bed and use Large Rotating Hooks

• Rotating Hook with Standard "U" Size Bobbins.
• Dial stitch regulator.
• Reverse feed.
• Standard needle gauges are 8 mm and 9.5 mm
• Additional gauges sizes are available by special order.

4699
The 4699 is similar to the model 6191 single needle tall post bed machine. the needle of this Compound Needle Feed Walking Foot machine is located to the right side of the rotating hook. Hook on the left. The advantage of this machine is that the 17" tall post is hinged and is able to tilt forward towards the operator to load and unload bulky items under the presser foot without damaging your work.

• Post is 17 inches high with a "G" bobbin.
• Sews up to 3/8"of leather with up to size 138 bonded thread.
• Recommended Needle: Schmetz 135 x 16 TRI, or 135x17

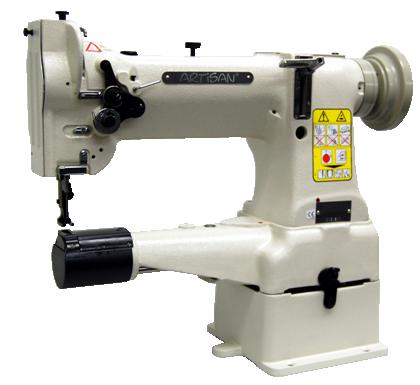

4618
The 4618 post bed machine is a high quality lockstitch single needle, needle feed machine with a positive feed roller presser foot and a semi-automatic lubrication system. The machine is designed to for stitching very light to medium heavy leathers, boot tops, shoes and upholstery fabrics where quality stitch formation is of the utmost importance. All bobbins, bobbin cases, hooks, needle plates and feed wheels are industry standard and interchangeable with readily available replacement spare parts.

• Adjustable Stitch Length from 30 Stitches per Inch to 5 Stitches per Inch.
• Rotating Hook with Standard "G" Size Bobbins.
• Recommended Thread Range: Z-15 to Z-138.
• Recommended Needle: Schmetz 135 x 8, size #10 to #18.
• Push button stitch regulator.
• Reverse is not available.

• 7 Inch High Post Bed with Reverse.
• "G" Size Bobbin and Rotary Hooks.
• Needle Bar Stroke 36mm.
• Presser Foot Lift, up to 16mm.
• Semi-Automatic Lubrication System.
• Standard Gauge is 3.2mm.
• Optional gauges are 2.4mm and 4.0mm, Others at additional cost.

The 5110 is a simple to operate single needle post bed lockstitch machine with a 7" tall post, a roller presser foot and a drop feed system with a feed dog. The machine is an updated modern style with a dial type stitch regulator and ha a level operated reverse mechanism for back tacking. Many of the spare parts are interchangeable with a Singer model 51 class.

5120

The 5120 is a simple to operate "double" needle post bed lockstitch machine with a 7" tall post and a drop feed system with a feed dog. . The roller type presser foot is mounted to the left side of the needles. The machine is an updated modern style with a dial type stitch regulator and has a level operated reverse mechanism for back tacking. Several needle gauges are optionally available.

Both machines offer:

• 7 Inch High Post Bed with Reverse.
• Standard Size Rotary Hooks and Roller Presser feet.
• Needle Bar Stroke 33.4mm, Take-up Lever Stroke 61.5mm.
• Presser Foot Lift, 10mm on 5110 and 7.5mm on 5120 models.
• Manual Lubrication System.
• Optional gauges are 2.4mm and 4.0mm, Others at additional cost.

The 6191-1L and 6191-1R series are Compound Needle Feed Walking Foot Machines with an extremely tall 17" post bed. Several sub classes are available.

Four classes of single needle machines similar to the model 4518 series are available, and one double needle version, model 6191-2B. All themodels use Large Rotating Hooks with size "G" bobbins. The machine mechanisms are similar to the 4400/4420 series flat beds, except are tall post bed versions. Reverse feed and a dial stitch-length regulators are standard. Available standard needle gauges are 8 mm and 9.5 mm.

By special order some additional needle gauge sizes are available. Telephone for additional information. Available with left side stitching bed or right side stitching bed.

For stitching light to medium heavy products such as shoes, boots, bags, cases, and other difficult to handle or bulky items.

• Left (6191-L) side stitching bed or Right (6191-R) side stitching bed.
• Post is 17 inches high with a "G" bobbin.
• Sews up to 3/8"of leather with up to size 138 bonded thread.
• Recommended Needle: Schmetz 135 x 16 TRI, or 135x17
