 618-1 SC, 618-1 D2
618-1 Series
These machines are know as a Compound Needle Feed Walking Foot Sewing machines. Designed to stitch upholstery type fabrics, leather and threads. The purpose of a compound needle feed walking foot machine is to sew two or more layers of fabric or leather with an equal distance stitch length and to greatly reduce the chance of ply slippage. This is the most popular sewing system for the automobile and furniture upholstery.
The 618-1 Series are recommended for stitching light to medium-heavy leather. One would choose this style of stitcher for sewing chaps, chinks, head stalls, lighter weight harness, heavy draperies, canvas products webbing, tents, awnings, belting hand bags, cases, wallets, cell phone cases, checkbooks covers, book jackets, and all manner and kinds of products from the thickness of a sheet of paper up to 7/16" of heavy leather and thread up to size #207.
The 618-1 Series is a very adaptable model that can be adjusted within its limitations to sew just about any known textile.
Contact for additional information concerning your product application needs. |
618-1SC
Compound Needle Feed, Walking Foot Sewing Machine. with Big "M" bobbin, Rotating Hook and Reverse Feed. This model includes a SAFETY CLUTCH mechanism designed to protect the machine from possible damage should the sewing machine "jam" from a thread lock up or broken needle striking the rotating hook point.
High quality sewing machine designed for a full day of production sewing of: Upholstery, Canvas, Tarps, Leather, Denim, Nylon or other heavy fabrics.
The machine comes adjusted for size Z-69 thread with a 135 x 17 # 22 needle.
- Walking Foot Machines with Standard Interchangeable 111w Style Presser Feet.
- Large Rotary Hook and "M" Size Big Bobbin.
- Thread sizes from 33 to 207.
- Forward and Reverse.
- Manual Lubrication with Oil Reservoir to Lubricate the Rotating Hook.
- Extremely Quiet and Reliable Operation.
- Maximum Stitch Length 2.5 stitches/inch. Extremely Long.
|
618-1SC
|

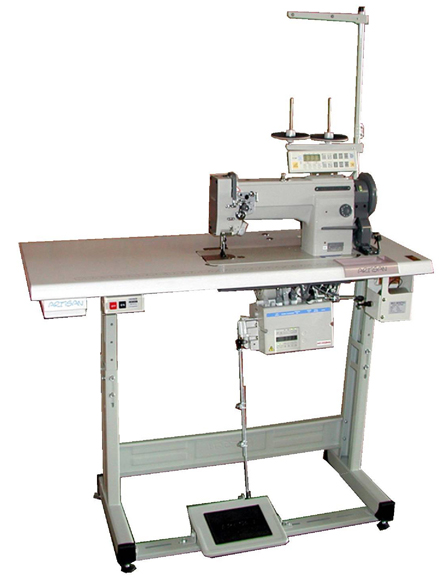

618-1 D2
Compound Needle Feed, Walking Foot Sewing Machine, with Big "M" Size bobbin, Rotating Hook and Reverse Feed.
The 618-1 D2 is a highly efficient "state-of-the-art" machine, The Ho Hsingg HVP motor system is completely programmable and will stop the machine, every time, with either the needle in the down or needle up position. Automatically position the needle, and programmable
stitch counter and pattern selector control panel. Includes an electric presser foot liter.
- Walking Foot Machines with Standard Interchangeable 111w Style Presser Feet.
- Large Rotary Hook and "M" Size Big Bobbin.
- Thread sizes from 33 to 207.
- Forward and Reverse.
- Manual Lubrication with Oil Reservoir to Lubricate the Rotating Hook.
- Extremely Quiet and Reliable Operation.
- Maximum Stitch Length 2.5 stitches/inch. Extremely Long.
|
618-1 D2 |
1797 AB, 797 AB, 797 AB-8001 and 797 AB NS
The 797 series Are machines is know as a Drop Feed Walking Foot Sewing machine with an internal automatic lubrication system (pump type). All of the walking foot machines in the series include a completely adjustable differential type upper feeding system. This system allows the machine to add additional "fullness" to a seam or adjusted in the opposite direction to pull the fabric to reduce potential fabric "sheering" and lay a flat seam.
The 797 LTHR series are designed to stitch lighter weight upholstery type fabrics, and leather with heavier threads. The 797 LTHR series are smoother to operate, much quieter than other walking foot machines and will sew up to 3/8" of leather or textiles.
The 797 LTHR series uses alternating presser foot walking foot machine to sew two or more layers of fabric or leather with an equal distant stitch length and to greatly reduce the chance of ply slippage. The 797 LTHR series are more popular in Europe and Asia for automobile and furniture upholstery and this type of machine system is easier to learn to sew with and is not as costly as a compound stitcher.
The 797 LTHR series is recommended for stitching light to medium weight leathers and fabrics. One would chose The 797 LTHR series of walking foot sewing machines to stitch leather gloves, leather jackets, and garments, chaps, chinks, jeans, draperies, lighter canvas products, light webbing, light weight tents, awnings, belting, wallets, check book covers, book jackets upholstery and leather products from a thickness of a piece of paper up to 3/8" in overall thickness.
Contact for additional information concerning your product application needs. |
1797 AB
The 1797 Walking Foot Upholstery Machine, Drop Feed, Big Bobbin Hook with Reverse Feed.
Fully Automatic Lubrication with a Pressure Oil Pump and an Aluminum Alloy Oil Pan. The 1797 AB will sew a perfectly flat pucker less seam.
A high quality sewing machine designed for a full day of production sewing of: Upholstery, Canvas, Tarps, Leather, Denim, Nylon or other heavy fabrics.
Thread sizes from 33 to 138.
The machine comes adjusted for size B-69 thread with a 135 x 17 # 22 needle.
- Large Rotary Hook with Big "M" Size Bobbin.
- Reverse Feed Mechanism & Oil Flow Sight Glass.
- Machine Manufactured to the Highest Japanese Mitsubishi company standards.
- Interchangeable Presser Feet with Juki 141, Brother 797, Chandler 337, Nakajima 181L, Mitsubishi DY350, LY3300 and others.
|
1797 AB
|
797 AB-8001
797 AB-8001 Stitching Machine Drop Feed, Big Bobbin Hook with Reverse Feed and Speed Reducer. Adjustable Height Presser Foot Walk Device to Climb over Heavy Obstacles. Sews up to 7/16" Leather or Fabric with 7/16" Presser Foot Lift. Up to 3.5 stitches per inch.
A Very High Quality Walking Foot, Adjustable Height Presser Foot Walking Device to Climb over Heavy Obstacles, Front Foot Lifter. New and Improved Model of 797 AB Stitching Machine Drop Feed Stitching Machine with a Big "M" Bobbin Rotating Hook, Including an Automatic Oil Lubrication System with Reverse Feeding for Back-Tacking.
For Sewing leather gloves, leather jackets, and garments, chaps, chinks, jeans, draperies, lighter canvas products, light webbing, light weight tents, awnings, belting, wallets, check book covers, book jackets upholstery and leather products from a thickness of a piece of paper up to 3/8" in overall thickness.
Very similar to the NS in features, except the machine casting is longer providing 13" from the needle to the right edge and the machine is also taller with an additional 1" from the base to the horizontal arm of the machine.
- Adjustable Height Presser Foot Walk Device to Climb over Heavy Obstacles.
- Sews up to Fabric with 7/16" Presser Foot Lift.
- Up to 3.5 stitches per inch.
- Sews up to 2,200 SPM.
- Clearance needle to vertical arm is 13". Height is 6" clearance from the bed to the horizontal arm.
|
797 AB-8001 |
797 AB NS
797 AB NS Stitching Machine Drop Feed, Big Bobbin Hook with Reverse Feed and Speed Reducer. Adjustable Height Presser Foot Walk Device to Climb over Heavy Obstacles. Sews up to 7/16" Leather or Fabric with 7/16" Presser Foot Lift. Up to 3.5 stitches per inch.
A New Updated Model Very High Quality Walking Foot, Adjustable Height Presser Foot Walking Device to Climb over Heavy Obstacles, Front Foot Lifter. New and Improved Model of 797 AB Leather Stitching Machine Drop Feed Leather Stitching Machine with a Big "M" Bobbin Rotating Hook, Including an Automatic Oil Lubrication System with Reverse Feeding for Back-Tacking. For Sewing: Chaps, Chinks, Belts, Holsters, Check Book Covers, Wallets, Day Planners, Vests, etc. (See 797 AB NS LTHR)
Controllable Stitching Speeds up to 190 SPM when equipped with the Artisan SR-2 Speed Reducer.
- The Machine Sews Leather more than 3/8" and has a 5/8" Presser Foot Lift.
- The Maximum Thread up to size 138.
- New style front presser foot lifter and a dial adjustment for the presser foot walk height.
- A Dial Type Stitch Length Regulator Adjusts to 3.5 stitches per inch.
- Optional Presser Feet are Available.
- Controllable Stitching Speeds up to190 SPM when included with the Artisan SR-2 Speed Reducer.
- Recommended Needle: Schmetz 135 x 17 #18 to #24.
- Uses thread up to size 207 maximum.
- Automatic Oil Lubrication System.
- Changeable to 190 R style needle.
- Optional Presser Feet are Available.
|
797 AB NS
|
|
4400 RB
The 4400 & 4420 Series of heavier duty machines know as compound Needle Feed Walking Foot Sewing Machines. All of the machines are designed to stitch upholstery type fabrics, leather and heavier threads.
The purpose of a compound needle feed walking foot machine is to sew tow or more layers of fabric or leather with an equal distant stitch length and to greatly reduce the chance of ply slippage. In North America, this is the most popular sewing system for automobile and furniture upholstery.
The 4400& 4420 Series is also recommended for stitching light to medium-heavy leathers. One would choose this style of stitcher for sewing banners, tarpaulins, canvas products, webbing, tents, awnings, belting, hand bags, cases, and all manner and kind of products form the thickness of a sheet of paper up to almost 7/16" of textiles and thread up to size #207 or lager with special adjustments.
The standard models include a fully automatic lubrication system and sew up to 2200 spm on upholstery fabrics. All of the 4400& 4420 Series machines use a large Bobbin, Horizontal Axis Rotating Hook with a "U" size bobbin.
Contact for additional information concerning your product application needs. |
4400 RB
A single needle machine including a "Safety Clutch" mechanism designed to protect the machine from possible damage should the sewing machine "jam" from a thread lock-up or a broken needle strike the rotating hook point.
Very Heavy Duty Compound Needle Feed, Walking Foot Upholstery sewing machine, with extra large drop-in bobbin.
- Interchangeable Presser Feet with Singer 111W, 211W, Consew 255RB, Juki LU-563 and others.
- Reverse Feed.
- Automatic Lubrication.
- Speed Reducer.
- Fully Automatic Lubrication with Pressure Oil Pump & Alloy Oil Pan.
- Double Capacity Rotating Hook, Drop-in Bobbin, Vertical Axis.
- 5/8 inch (16mm) Maximum Foot Lift.
- Extra Long 36mm Needle Stroke.
- Maximum Stitch Length is up to 3 stitches per inch.
|
4400 |
4400-25
4400-25 Very Heavy Duty Compound Needle Feed, Walking Foot with Extra Large Drop-in Bobbin, Reverse Feed.
- 25" Long Working Area including a "Safety Clutch" mechanism.
- Interchangeable Presser Feet with Singer 111W, 211W, Consew 255RB, Juki LU-563 and others.
- Manual lubrication system.
- Double Capacity Rotating Hook, Drop-in Bobbin, Vertical Axis.
- 5/8 inch (16mm) Maximum Foot Lift.
- Extra Long 36mm Needle Stroke.
- Maximum Stitch Length is up to 3 stitches per inch.
|
4400-25 |
A-100-2, 1988 MDZ, 5550 Big H, and 518 Series
Drop Feed Lock Stitch, Single Needle Sewing Machines are the most common type of sewing machines. This style is also the most prevalent type of machine used in both apparel production and in the dressmakers shop or the alteration room.
All Drop Feed Lock Stitch, Single Needle Sewing Machines have rotating hook with a fully automatic pump lubrication system and include a lever for back tacking or stitching in reverse.
All Drop Feed Lock Stitch, Single Needle Sewing Machines include a dial operated stitch length system and needle bearing link type take-up lever.
Contact for additional information concerning your product application needs. |
