Leather Stitching Machines

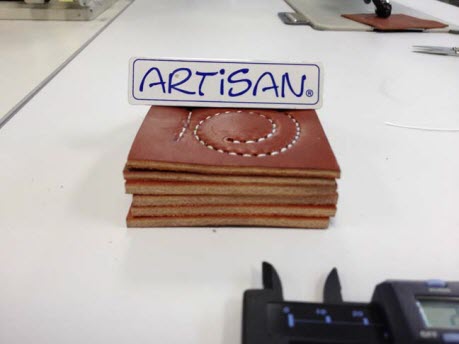

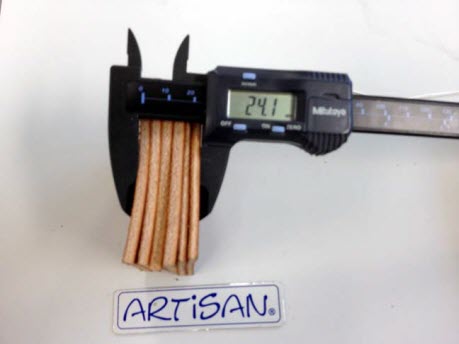

Heavy Dutyartisan® TORO-3200 Stitchers with a 12 1⁄2" working area cylinder bed are known as Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine and include a very large size Bobbin and Oscillating Shuttle Hook system designed to stitch from as light as 2 to 3 sheets of paper, up to as heavy as 9⁄10 inch or 24.1 mm thick. Some features of theartisan® TORO-3200 include a lever type stitch regulator with Reverse feed and a built-in bobbin winder mechanism. The machines stitch using threads manufactured using bonded twisted Nylon or Poly Threads from light weight sizes such as z-69 (tex 70) up to as heavy as size z-415 (tex 410) industrial threads. We recommend genuine SCHMETZ brand Needles from diameters as light as 794 NM110, (#18) up to NM250 (#27) including leather point needles 794 S #21 to #26 and 794 D #23 to #25.artisan® is the direct distributor of Schmetz brand, German manufactured highest quality needles and carries all of the various sizes. Please telephone or E-mail us at 888 838 1408 for help in deciding what is best size needle for your requirements.

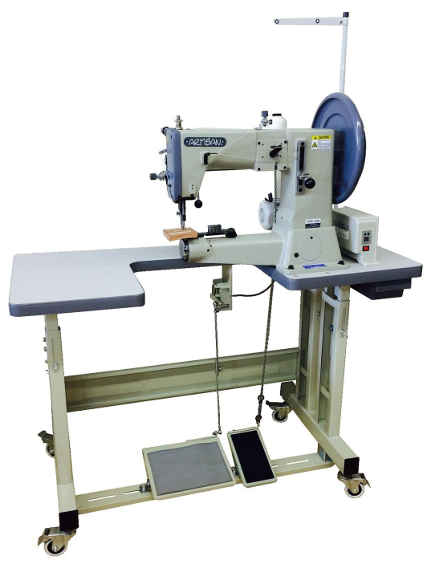

TORO-3200 with "U" Table $2600.00
The newartisan® TORO-3200 "U" is a complete sewing system as shown in the adjoining photograph.
We recommend the TORO-3200 series stitchers for sewing all types of light/medium and up to very heavy vegetable tanned leathers and many other projects. Some of the items recommend for stitching on the Artisan TORO-3200 series are Western and English style Saddles, Heavy and Light Belting Leather, Knife Sheaths, and Scabbards, Concealed Carry Holsters, Equestrian Tack of all kind, light to very heavy Harness, Head Stalls, Breast Collars, Chaps, Chinks, Hand Bags, Saddle Bags, Messenger Bags, Motorcycle Seats, Side Seaming Pull-on Boot Welting, Arrow Quivers, and all manner of Leather, Bio-Plastic, or Webbing.
The "U" system, as shown includes the sewing machine and our exclusiveartisan® extremely high torque model ACF-680, 880 Watt, 1.1 HP, or ACF-681, 1100 Watt, 1.7 hp Digital Electronic A.C. Servo Motor with 5.3 Nm of torque in 110 volts or 220 volts. The "U" Style Table Top is manufactured in the USA, and the Adjustable "T" Style Steel Legs including four lockable high quality caster wheels are included as well as the double intensity switchedartisan® ADR-124, low voltage gooseneck lamp with 24 LED's. Our complete accessory package for leather stitching always includes, 10 additional SCHMETZ brand needles, 4 Aluminum Bobbins, the center groover presser foot, a left side presser foot, a right side presser foot, and a double toe presser foot. Theartisan® deluxe swing away roller edge guide, a two year supply of quality sewing machine oil, and a tool kit consisting of 2 open end wrenches, 3 Allen wrenches, and 2 screw drivers are included as well. Our operators manual and spare parts book along with the exclusiveartisan® " Lifetime Limited Warranty" are also included in the complete package. Shipping to your location is easy and set up usually take about 35 minutes to open, un-box the sewing machine and mount it to theartisan® pre-assembled "U" type stand.
Call us atartisan® and we can explain everything necessary for you to get started enjoying the best in stitching machinery.

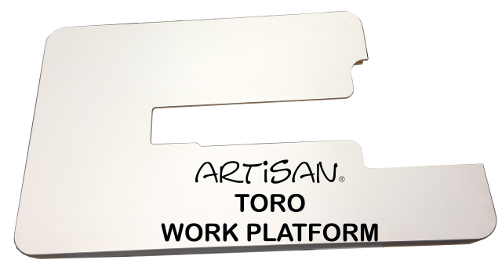

Optional Work Platform available.$100.00
TORO-3200 BT $2600.00artisan® TORO-3200 BT machines are designed as a transportable sewing machine with all of the features as TORO-3200 "U" and TORO-3200 Ped-500 stitchers. The sewing machine sews exactly the same however, is mounted on a platform with theartisan® ACF-680 servo motor attached nearby the sewing machine. A hand operated presser foot lifter is used to raise and lower the presser feet. Sewing speeds are regulated from a foot operated electronic pedal place on the floor at your convenience. The BT is intended for sewers with a limited amount of floor space or who want a heavy duty machine to be transportable from job site to rodeo, trade show or festival. BT machines may be operated using either 110 volt, or 12 volts using an inverter and plugged into your vehicle or attached to a portable 12 volt automotive or marine type battery.
Optional BT Work Platform available.$125.00

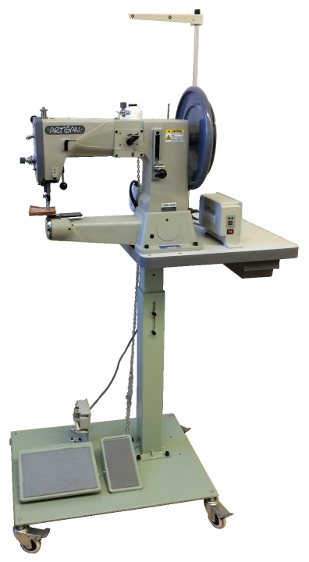

TORO-3200 with PED 500 $2900.00 artisan® TORO-3200 Ped-500 models with the pedestal system stitch and sew exactly the same as all of the TORO-3200 series machines, but the sewing machine is mounted on ourartisan® Ped-500 adjustable height, single post pedestal with heavy duty locking caster wheels as shown including the sewing machine and our exclusiveartisan® extremely high torque model ACF-680, 880 Watt, 1.1 HP, or ACF-681, 1100 Watt, 1.7 hp Digital Electronic A.C. Servo Motor with 5.3 Nm of torque in 110 volts or 220 volts. Table Tops are manufactured in the USA, Our complete accessory package for leather stitching always includes, 10 additional SCHMETZ brand needles, 4 Aluminum Bobbins, the center groover presser foot, a left side presser foot, a right side presser foot, and a double toe presser foot. Anartisan® ADR-124, low voltage gooseneck lamp with 24 LED's, A deluxe swing away roller edge guide, a two year supply of quality sewing machine oil, and a tool kit consisting of 2 open end wrenches, 3 Allen wrenches, and 2 screw drivers are included as well. Our operators manual and spare parts book along with the exclusiveartisan® " Lifetime Limited Warranty" are also included in the complete package. Shipping to your location is easy and set up usually take about 35 minutes.
Optional Work Platform available.$100.00
TORO-3200 with PED 520 $2695.00 artisan® Ped-520 models pedestals are designed and used mostly for manufacturing boots and shoes. Theartisan® TORO-3200 with the Ped-520 pedestal system stitch and sew exactly the same as all of the TORO-3200 series machines, but the sewing machine is mounted on our Ped-520 adjustable height, double leg pedestal with heavy duty locking caster wheels as shown including the sewing machine. A hand operated presser foot lifter is used to raise and lower the presser feet. Sewing speeds are regulated from a foot operated electronic pedal place on the floor at your convenience. Our exclusiveartisan® extremely high torque model ACF-680, 880 Watt, 1.1 HP, or as an option, the ACF-681, 1100 Watt, 1.7 hp Digital Electronic A.C. Servo Motor with 5.3 Nm of torque in 110 volts or 220 volts. Table Tops are manufactured in the USA, Our complete accessory package for boot stitching always includes, 10 additional SCHMETZ brand needles, 4 Aluminum Bobbins, the center groover presser foot and a right side presser foot are normally offered with this model. Anartisan® ADR-124, low voltage gooseneck lamp with 24 LED's, the deluxe swing away roller edge guide, a two year supply of quality sewing machine oil, and a tool kit consisting of 2 open end wrenches, 3 Allen wrenches, and 2 screw drivers are included in this package as well. Our operators manual and spare parts booklet along with the exclusiveartisan® " Lifetime Limited Warranty" are also included in the complete package. Shipping to your location is easy and set up usually takes about 35 minutes to open and un-box the sewing machine and mount it to theartisan® pre-assembled pedestal.
Optional Work Platform available.$100.00
Allartisan® TORO-3000, TORO-3200, and TORO-4000 are available with the optional Flat Bed Work Platform conversion.
Call us atartisan® and we can explain everything necessary for you to get started enjoying the best in stitching machinery.

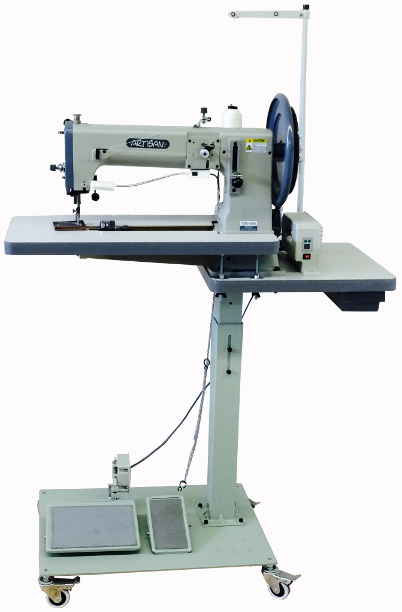

TORO-4000 R with PED 500 $3020.00 Heavy Duty, Longer, Armartisan® TORO-4000 series Stitchers with a 16-1⁄2" working area cylinder bed are known as Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine and include a very large size Bobbin and Oscillating Shuttle Hook system designed to stitch from as light as 4 to 6 sheets of paper, up to heavy weight 7⁄8 inch or 22 mm thick. Some features of theartisan® TORO-4000's include a lever type stitch regulator with Reverse feed and a built-in bobbin winder mechanism. The machines stitch using threads manufactured using bonded twisted Nylon or Poly from light weight sizes such as z-138 (tex 135) up to as heavy as size z-415 (tex 410) industrial threads. We recommend genuine SCHMETZ brand Needles from diameters as light as 794 NM110, (#18) up to NM250 (#27) including leather point needles 794 S #21 to #26 and 794 D #23 to #25.
Optional Work Platform available.$100.00

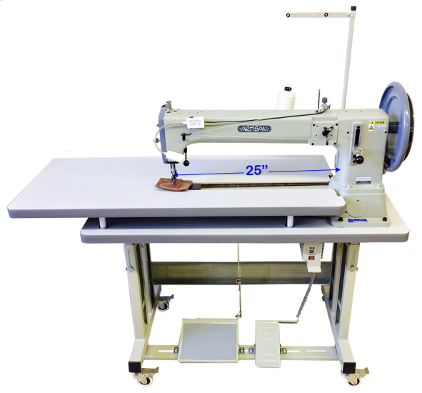

TORO-4000 LA-25 with Work Platform$4250.00
TORO-4000 LA-25 with PED 600 Pedestal Stand$4800.00
25" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch length regulator with Reverse feed and a machine mounted bobbin re-winder. The 25" Long arm TORO-4000 will sew up to 7⁄8" of leather and sews bonded threads from size 138 up to size 346.
The TORO 4000 LA-25 Stitcher is available with anartisan® heavy duty adjustable double "T" style steel legs with four lockable caster wheels, and includes our exclusive 110 volt 800 Watt, 1 HP Model ACF-680 Electronic A.C. Servo Motor and anartisan® ADR-124, 24 LED low voltage gooseneck lamp. (PED 600 setup not pictured).
Recommended SCHMETZ brand Needle. Leather:794 D Size(23 to 26)
TORO-4000 P LA-37$8605.00 37" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch length regulator with Reverse feed and a machine mounted bobbin re-winder. The 37" Long arm TORO-4000 P will sew up to 7⁄8" of leather and sews bonded threads from size 138 up to size 415.
The TORO 4000 LA-37 Stitcher is available fromartisan® with our extra heavy duty cast iron Ped-700 Pedestal Stand which includes our exclusive 110 volt 880 Watt, 1 HP Model ACF-680 Electronic A.C. Servo Motor and anartisan® ADR-124, 24 LED low voltage gooseneck lamp.
Recommended SCHMETZ brand Needle. Leather:794 D Size(23 to 26)
TORO-3000
This older model is now enjoying it's well deserved retirement
Heavy Duty Short Armartisan® TORO-3000 Stitchers with a 9" working area cylinder bed are known as Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine and include a very large size Bobbin and Oscillating Shuttle Hook system designed to stitch from as light as 4 to 6 sheets of paper, up to as heavy as 7⁄8 inch or 22 mm thick. Some features of theartisan® TORO-3000 include a lever type stitch regulator with Reverse feed and a traditional table top mounted bobbin winder mechanism. The machines stitch using threads manufactured using bonded twisted Nylon or Poly Threads from light weight sizes such as z-138 (tex 135) up to as heavy as size z-346 (tex 350) industrial threads. We recommend genuine SCHMETZ brand Needles from diameters as light as 794 NM110, (#18) up to NM250 (#27) including leather point needles 794 S #21 to #26 and 794 D #23 to #25.
artisan® is the direct distributor of Schmetz brand, German manufactured highest quality needles and carries all of the various sizes. Please telephone or E-mail us at (888) 838-1408 for help in deciding what is best size needle for your requirements.
We recommend the TORO-3000 series stitchers for sewing all types of medium and up to heavy vegetable tanned leathers. Some of the items recommend for stitching on theartisan® TORO-3000 series are Western and English style Saddles, Heavy and Light Belting Leather, Knife Sheaths, and Scabbards, Concealed Carry Holsters, Equestrian Tack of all kind, light to very heavy Harness, Head Stalls, Breast Collars, Chaps, Chinks, Hand Bags, Saddle Bags, Messenger Bags, Motorcycle Seats, Side Seaming Pull-on Boot Welting, Arrow Quivers, and all manner of Leather, Bio-Plastic, or Webbing.
artisan® TORO-3000 stitchers use the same Ped-500, "U" type stand and BT versions and Servo motors as TORO-3200 Machines and TORO-4000 machines.
Optional Work Platform available.$100.00
618-1 SC LTHR This older model is now enjoying it's well deserved retirement Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, (end loading mechanism). Additional features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews Leather up to 7⁄16" thickness
The Complete sewing machine fromartisan® includes our exclusive 800 Watt Output ACF-625 Electronic A.C. Energy Saving Servo Motor Stand Drive Unit, adjustable "T" style steel legs including locking caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, drawer and accessories.
Recommended SCHMETZ brand Needle.
Leather: 135 x 16 TRI Size(14 to 24). Up to size z-207 Thread.
1797 AB LTHR This older model is now enjoying it's well deserved retirement Walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, Dial operated stitch length regulator, Reverse feed lever with fully Automatic Lubrication. This machine sews leather up to 3⁄8" thickness with thread from size z-33 up to size z-138.
The Complete sewing machine fromartisan® includes our exclusive 800 Watt Output ACF-625 Electronic A.C. Energy Saving Servo Motor Stand Drive Unit, adjustable "T" style steel legs including locking caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Leather: 135 x 16 TRI Size(14 to 23)
One of our most popular walking foot machines for lighter weight leather stitching.
