Flat Bed Walking Foot Machines
797AB $1328.00Walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, Dial operated stitch length regulator, Reverse feed lever with fully automatic Lubrication. This machine sews up to 3⁄8" thickness with thread from size 33 up to size 138.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck lamp, drawer and accessories.
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 24), Leather: 135 x 16 TRI Size(14 to 24)

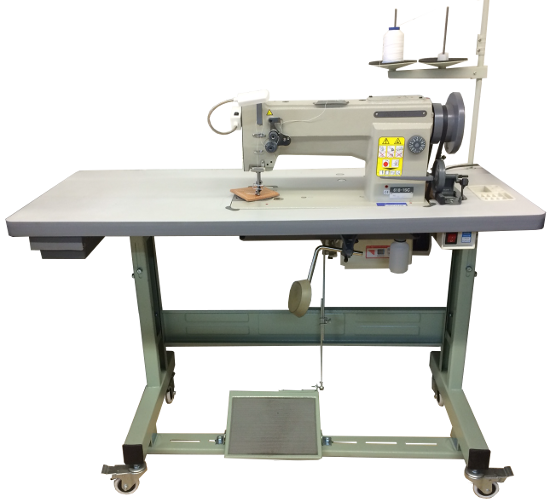

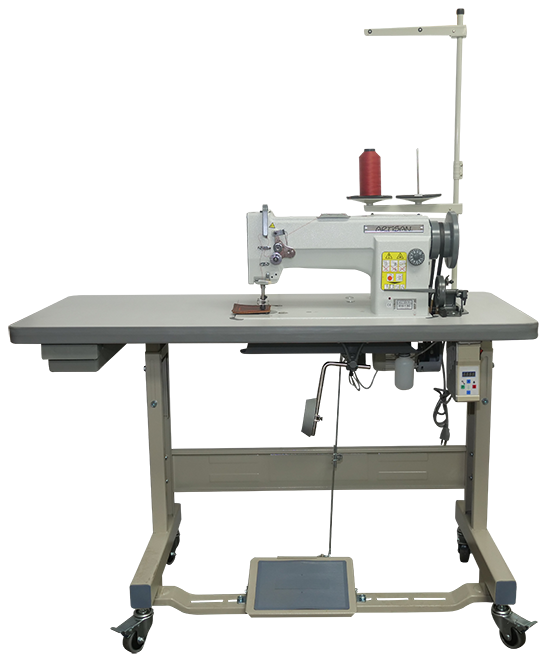

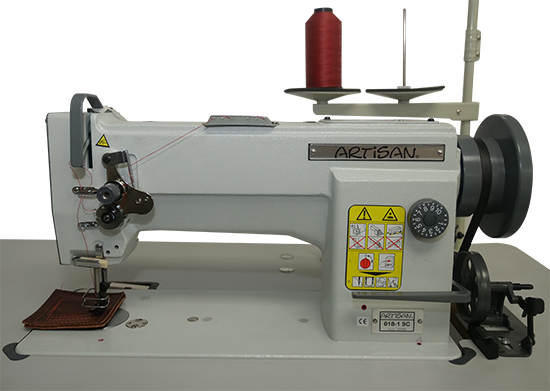

618-1 SC $1495.00Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, (end loading mechanism). Additional features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 7⁄16" thickness.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage lamp, drawer and accessories.
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 24), Leather: 135 x 16 TRI Size(14 to 24)
The 618-1 SC is our most popular walking foot machine for upholstery and leather stitching.

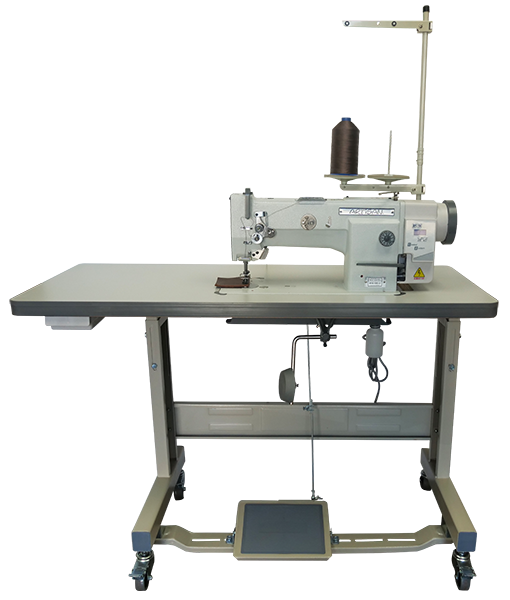

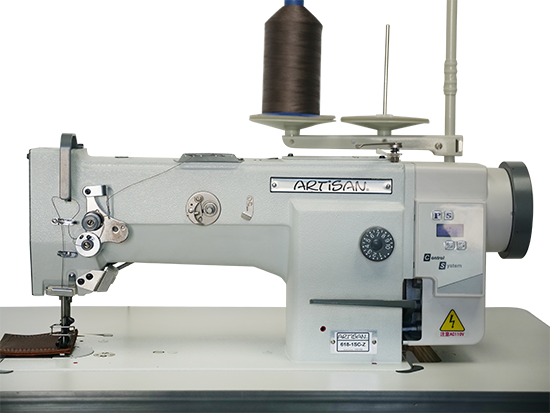

618-1 SC-Z $1795.00Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Direct Drive Sewing Machine with Needle Positioning and a Big "M" size Bobbin and Rotating Hook. Additional features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 7⁄16" thickness.
The Complete sewing machine fromartisan® includes the Electronic Servo Motor Stand Direct Drive Unit with adjustable "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage lamp, drawer and accessories.
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 24), Leather: 135 x 16 TRI Size(14 to 24)
1541 S Discontinued JUKI DNU-1541S available Click Here JUKI Inspired Stitcher with Horizontal Big Bobbin Rotating Hook Theartisan® model 1541 S is a new model Compound Needle Feed, Walking Foot Single Needle Lockstitch Sewing Machine with a horizontal Big Rotating Hook and an "M" sized Big Bobbin, The machine has a Safety Clutch mechanism and includes features like a 5⁄8" high presser foot lift. The machine has a Semi-Automatic Lubrication system and a newly designed presser foot lifting devise with a Large Top Dial mechanism for adjusting the walking foot height lift while on the fly crossing over thick seams or obstacles. You can sew from a very short stitch length of about 20 stitches per inch up to a very long stitch length of 3 stitches per inch in forward or in reverse sewing modes.
The 1541 Heavy Duty Machine stitches up to 7⁄16" of Leather, Fabrics, or Canvas and additionally sews thread sizes from as small as size z-46 up to a remarkable z-138 without special mechanical adjustments.
artisan® offeres this model mounted on a complete servo motor system including the most up to date 1.0 hp, 750 wattartisan® model ACF-628 digital electronic servo motor, or an optional digital electronic servo motor with a needle positioner is available. The system includes our USA manufactured Plywood core laminated table top, heavy duty "T" style adjustable height steel sewing machine legs with locking caster wheels, and anartisan® ADR-128 SMT LED magnetic base gooseneck lamp. Extra Schmetz needles, additional bobbins, a tool kit, manuals and accessories as well as theartisan® Lifetime Limited warranty are also included.
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17, Leather: 135 x 16 TRI, Size #14 to #24 (nm 90 to nm 180)
Optional Deluxe Roller Edge Guide available.$90.00

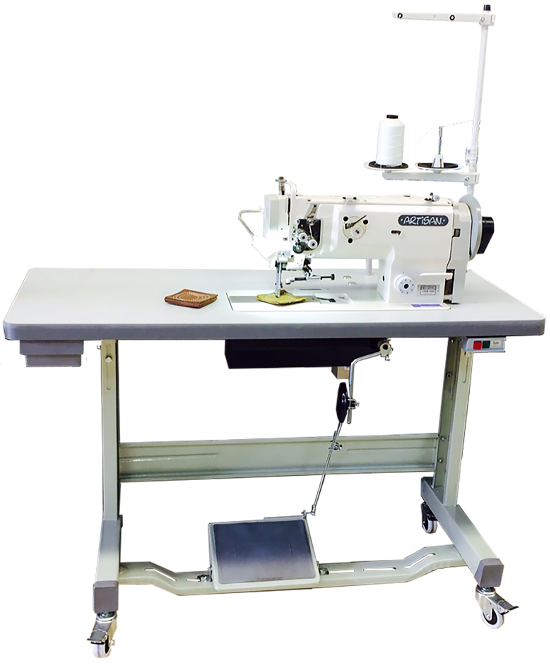

1508-10H $2240.00

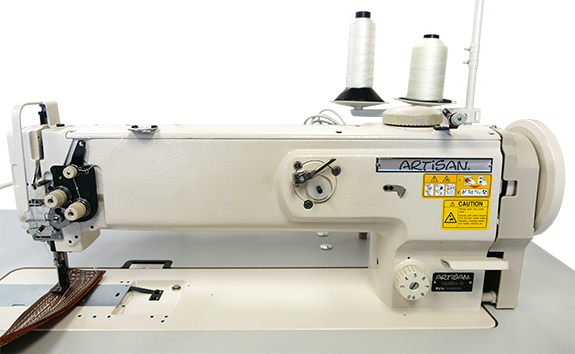

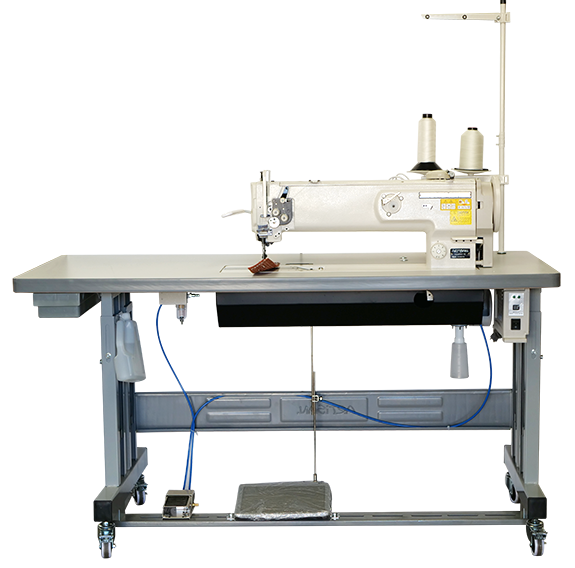

1508-18H 18" Long Work Area $3199.00 JUKI Inspired NEW Heavy Duty Stitcher Theartisan® model 1508-10H is a newly designed Compound Needle Feed, Walking Foot Single Needle Lockstitch Sewing Machine with the following features: a High Lift 38mm Needle Bar Stroke, Double Capacity Vertical-axis Rotating Hook, Semi-Automatic Lubrication, A newly designed modern Rectangular motion forward and reverse feed mechanism for stitching extra heavy fabrics, and up to a 10 mm long stitch length, including a large diameter 175 mm hand wheel, a presser foot height adjustment knob for varying layers and thicknesses. The 1508-18H has a added pneumatic presser foot lifter feature, requires a air system or pump to utilize this feature.
The 1508-10H Heavy Duty Machine stitches up to 1⁄2" of light to medium heavy types of Leather, Fabrics, or Canvas and additionally sews thread sizes from as small as size z-46 up to z-207 without special mechanical adjustments, size z-277 with only the needle (top) thread.
The machine is offered as a complete system including the most up to date 1.0 hp, 750 wattartisan® model ACF-628 digital electronic servo motor, an optional external mounted needle positioner/synchronizer is available. The system includes our USA manufactured Plywood core laminated table top, H/D "T" style adjustable steel sewing machine legs with locking caster wheels, anartisan® ADR-128 SMT LED magnetic gooseneck lamp. Extra Schmetz needles, additional bobbins, a spool ofartisan® "Premium Performance" thread, a tool kit, manuals and accessories as well as theartisan® Lifetime Limited warranty is also included.
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17, Leather: 135 x 16 TRI, Size #14 to #24 (nm 90 to nm 180)
Optional Deluxe Roller Edge Guide available.$90.00

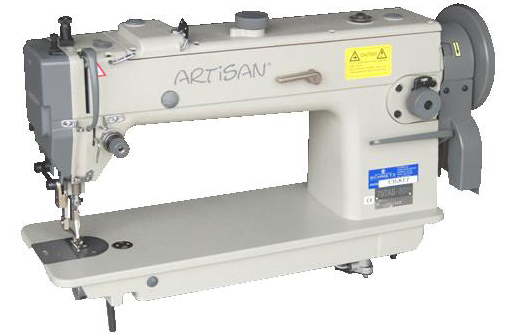

797 AB-8001 13" Long Work Area $2022.0013" long by 6" tall working area, walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, (end loading mechanism). New Style Presser Foot "Stepper" Mechanism to stitch over obstacles and heavy seams. Hand presser Foot Lifting Lever located on front of machine. Dial operated stitch length regulator, Reverse feed lever with fully automatic Lubrication and sews up to 3⁄8" thickness with thread from size 33 up to size 138.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24).

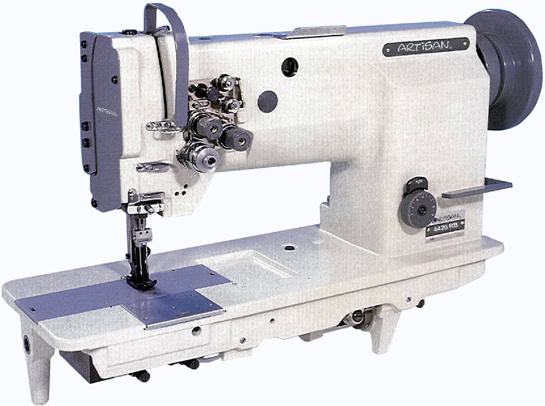

4400 RB $2120.00High Speed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large "U" size Bobbin and Rotating Hook, (Top loading mechanism). Additional features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, Automatic Lubrication and sews up to 7⁄16" thickness.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Adjustable to stitch up to size 207 needle thread.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24)

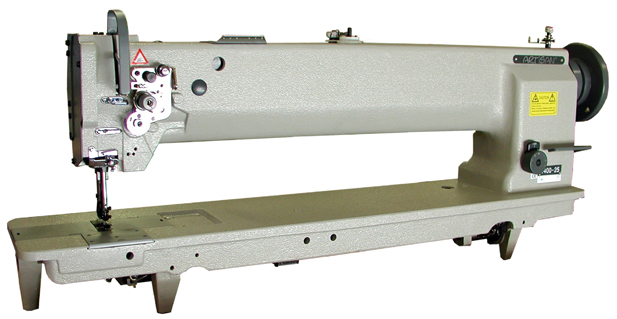

4400-25 $4930.0025" working area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large "U" size Bobbin and Rotating Hook, (Top loading mechanism). Additional features include a Safety Clutch mechanism, Dial operated stitch length regulator, a Pneumatic and Lever operated Reverse Feed Mechanism with a Pneumatically Operated Presser Foot Lifter (air operated), and semi-automatic Lubrication.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24)
4420 RB $2330.00Two Needle, High Speed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with Large "U" size Bobbins and Rotating Hooks, (Top loading mechanism). Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, automatic Lubrication and sews up to 3⁄8" thickness.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories. Adjustable to stitch up to size 207 threads. Optional to 277 needle threads. Machine weight, 220 lbs
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24)
4420-25 $5440.0025" working area Long Arm, Two Needle, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with Large "U" size Bobbins and Rotating Hooks, (Top loading mechanism). Features include a Safety Clutch mechanism, Dial operated stitch length regulator, a Pneumatic and Lever operated Reverse Feed Mechanism with a Pneumatically Operated Presser Foot Lifter (air operated), and semi-automatic Lubrication, and sews up to 3⁄8".
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories. Adjustable to stitch up to size 207 threads.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24)

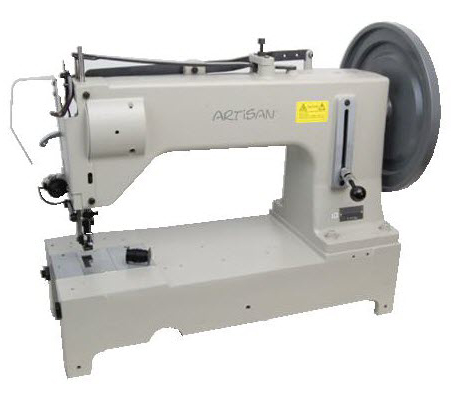

7334 $7860.00Extremely Heavy Duty Walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Extra Large Bobbin (1.75" x 1.28" dia.) and Oscillating Barrel Shuttle Hook. Similar to a Big Bobbin 7 class style. Lever operated stitch length regulator with reverse feed, a built-in Bobbin Winder, manual lubrication and this very heavy duty machine sews up to 1" thickness with up to 554 thread. Pneumatic Presser Foot Lifter, Optional.
The Complete sewing machine fromartisan® includes our exclusive ACF-680 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. 1000H Size(*25 to *30).

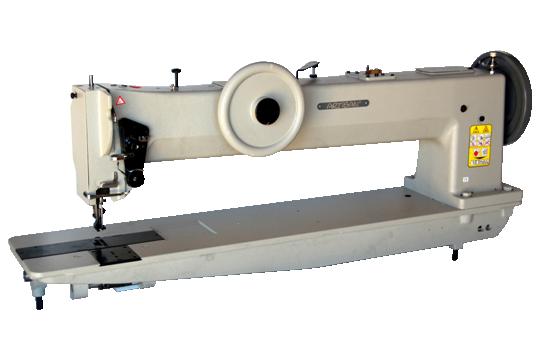

8144-20 / 8144-30 $6405.00 / $6790.00Single Needle, 20" or 30" working area Extra Heavy Duty Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Extra Large Bobbin (1.45" x .48" dia.) and Rotating Hook (Top loading mechanism). Some additional features include a Safety Clutch mechanism, stitch length regulator, Reverse feed, built-in Bobbin Winder, manual lubrication and this very heavy duty machine sews up to 7⁄8" thickness with up to 346 thread.
The Complete sewing machine fromartisan® includes our exclusive ACF-680 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 7 x 3 or 794 Size(*18 to *27).

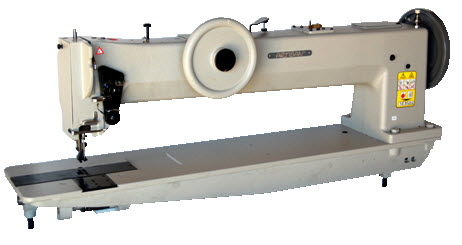

8145-20 / 8145-30 $6700.00 / $7740.00Double Needle, 20" or 30" working area Extra Heavy Duty Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Extra Large Bobbin (1.45" x .48" dia.) and Rotating Hook (Top loading mechanism). Some additional features include a Safety Clutch mechanism, stitch length regulator, Reverse feed, built-in Bobbin Winder, manual lubrication and this very heavy duty machine sews up to 7⁄8" thickness with up to 346 thread.
The Complete sewing machine fromartisan® includes our exclusive ACF-680 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Standard Gauge Set is 3⁄8", optional Gauge Set sizes are available.
Recommended SCHMETZ brand Needle. Fabrics: 7 x 3 or 794 Size(*18 to *27).
1797 AB This older model is now enjoying it's well deserved retirement Walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, Dial operated stitch length regulator, Reverse feed lever with fully automatic Lubrication. This machine sews up to 3⁄8" thickness with thread from size 33 up to size 138.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs, an LED low voltage gooseneck lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24).
One of our most popular walking foot machines for upholstery and lighter weight leather stitching.
1797-1C This older model is now enjoying it's well deserved retirement Edge Trimmer Walking Foot (Alternating Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, Dial operated stitch length regulator, Reverse feed lever with fully Automatic Lubrication and sews up to 3⁄8" thickness with thread from size 33 up to size 138.
The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs with caster wheels, an ADR-128 SMT LED low voltage gooseneck magnetic base lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24).
618-1 D2 This older model is now enjoying it's well deserved retirement Underbed Thread Trimmer, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Big "M" size Bobbin and Rotating Hook, (end loading mechanism). Dial operated stitch length regulator, Quick reverse and mechanical reverse feed lever, semi-automatic Lubrication and sews up to 3⁄8" thickness.
The Complete sewing machine fromartisan® includes a Ho Hsing Brand HVP Electronic Servo Motor with Needle Positioner device, programmable stitch counter, electric presser foot lifter Optional. A plywood table top stand drive unit with adjustable "T" style steel legs, a halogen low voltage lamp, drawer and accessories.
Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(*14 to *24).
