Post Bed and Shoe Stitching Machines

5110 / 5120$1649.00 / $2075.00Roller Presser Foot with Drop Feed, Feed Dog, 7" Tall Post-Bed Lockstitch Sewing Machine using standard size "G" Bobbins and Rotating Hooks, Dial type stitch length regulator with Reverse, manual lubrication and sews up to 532" thickness. Model 5120 is a double needle version with a 18" gauge. The Complete sewing machine fromartisan® includes our exclusive ACF-628 750 watts Electronic Servo Motor Stand Drive Unit with adjustable "T" style steel legs, the ADR-128 LED low voltage gooseneck magnetic base lamp, drawer and accessories.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 5 Size(10 to 16). Leather: 135 x 8 TRI Size(10 to 16)

5110 Single Needle Machine

5120Double Needle Machine

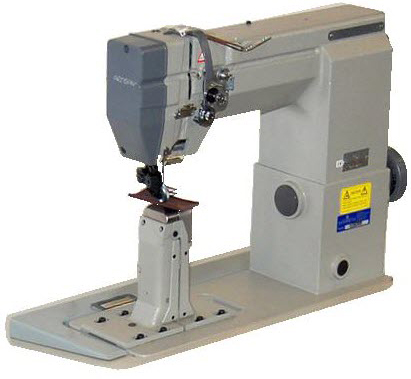

4618 Series

Needle Feed Post Bed Lockstitch Sewing Machines with Gear Driven Top Roller Wheel Feed Pressers and Bottom Gear Driven Lower Roller Feed Wheels. The models 4618, 4618R and 4618C Hvy use a standard size "G" Bobbin and Rotating Hooks. The 4618-LBB is a newly designed Big "M" size Bobbin and Rotating Hook machine and the 4618C Hvy uses a "G" size bobbin. Both of these post bed machines were designed to stitch heavy or thick threads up to size z-207. An example would be assembly of heavy duty leather boots for forest fire fighters, smokejumpers, or lumberjacks. The 4618, and 4618 R are intended for stitching normal leathers for both assembly and decorative stitching on fashion shoes and western style boots. All models include a top loading bobbin mechanism with a push button stitch length regulator, semi-automatic lubrication and are built to withstand the rigors of production sewing. Our model 4618-R includes a Reverse Feed Mechanism, and sews up to 532" thickness. The 4618-2 is a double needle version for standard size threads with up to a 2.4mm or 332" gauge.

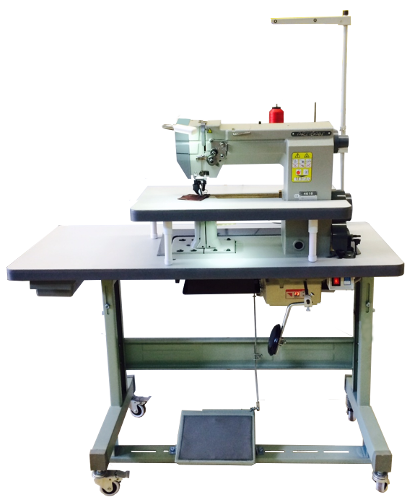

Completeartisan® Sewing Machine includes our exclusive 750 watt, 1.0 HP digital Electronic Servo Motor model ACF-628 and the Drive Unit stand has a USA manufactured laminated plywood table top with double "T" style steel adjustable legs with heavy duty locking caster wheels, an ADR-128, LED gooseneck magnetic base lamp, an accessory drawer and accessories like extra Schmetz needles, bobbins, manuals and a tool kit.

Recommended Needles: SCHMETZ 135 x 8 Size(10 to 23).



4618
Standard 'G' Size Bobbin$2160.00

4618-R
Discontinued Standard 'G' Size Bobbin, with Reverse Feed$2415.00

4618 LBB
Big 'M' Bobbin, Rotating Hook for Heavy Thread, up to size z207.$2580.00

4618 C Hvy
Discontinued Standard 'G' Bobbin, Rotating Hook for Heavy Thread. $2478.00

4618-2
Double Needle Machine, up to 2.4mm Gauge (3/32")$2930.00

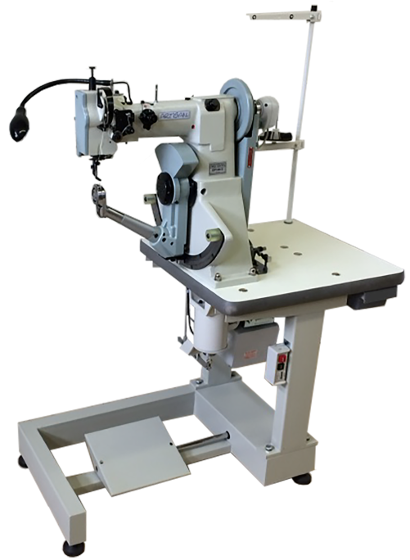

A-168/28658.00 Side Wall Shoe Seaming Machine with Compound Needle Feed Walking Foot mechanism. Designed for stitching box soles to uppers on athletic type shoes and work boots. This machine has a 180° floating arm allowing the operator to easily stitch around the toe box then around the heel and back to the starting position. The Machine is equipped with Ho Hsing i90 electronic servo motor with needle positioning and electric presser foot lifting mechanism and a very heavy duty special pedestal stand. 50mm Ø Large Bobbin Rotary Hook. Sews from 1.5 mm to 6 mm thick leather or man-made fabrics. Stitch Length from 3mm to 13 mm long. Needle CP x 5

Recommended SCHMETZ brand Needle. CP x 5







4518-1 / 4518-2$1950.00 / $2100.00 Needle Feed Lockstitch Sewing Machines with a "G" size Bobbins and Rotating Hooks, (Top loading mechanism). 7" Tall Post. Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 38" thickness. 4518-2 is a double needle version with a 18" gauge.

The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs, the ADR-128 LED low voltage gooseneck magnetic base lamp, drawer and accessories.

Recommended SCHMETZ brand Needle.
Fabrics:135 x 5 Size(10 to 16). Leather: 135 x 8 Size(10 to 16)

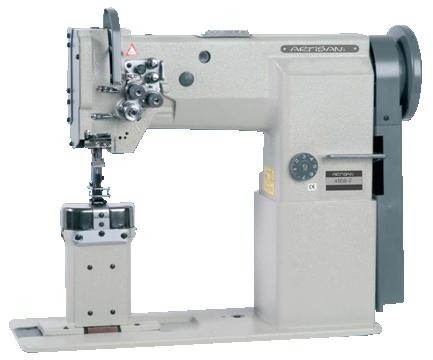

4608-1 / 4608-2$3200.00 / $3440.00 Compound Needle Feed, Walking Foot (Unison Feed), 7" tall Post-Bed Lockstitch Sewing Machines with "G" size Bobbins and Rotating Hooks, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 38" thickness. Model 4608 is available with a left or right side hook. 4608-2 is a double needle version with a 18" gauge.

The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs, the ADR-128 LED low voltage gooseneck magnetic base lamp, drawer and accessories.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23). Leather: 135 x 16 TRI Size(14 to 23)

4608 Single Needle Machine
4608-2Double Needle Machine

6191 / 6191-2$5550.00 / Call 17" Tall Post-Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Standard "G" size Bobbin and Rotating Hook, (Top loading mechanism). Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication. May be ordered with the Rotating Hook to the Left or Right side of the needle. Double Needle Version available.

The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic A.C. Servo Motor Stand Drive Unit with adjustable double "T" style steel legs, the ADR-128 LED low voltage gooseneck magnetic base lamp, drawer and accessories.

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(14 to 24)

6191-2Double Needle Machine

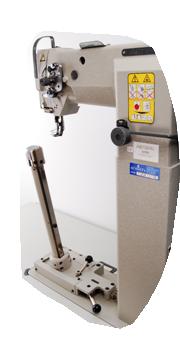

6199$7450.0017" Tall Tilting Forward Post-Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Standard "G" size Bobbin and Rotating Hook. Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication.

The Complete sewing machine fromartisan® includes our exclusive ACF-628 Electronic Servo Motor Stand Drive Unit with adjustable double "T" style steel legs, the ADR-128 LED low voltage gooseneck magnetic base lamp, drawer and accessories.

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(14 to 24)
